JPL Agora USB Video Conferencing
JPL Agora USB Video Conferencing
4K Ultra HD Intelligent All-In-One Video Sound Bar
Features
- 4K UHD 3840 x 2160p
- Intelligent 16 step auto zoom, powered by AI - lens moves to focus on the people speaking in the room
- 2 x High power all-range speakers
- 4K Sony glass lens - No optical distortion
- Magnetic privacy lens cover
- 4 x stereo duplexed microphones, 10m voice pickup
- Built in camera in-use LED indicator, power on/off LED indicator, microphone mute LED indicator
- Plug & play solution - No software or downloads needed
- Compatible with all computers (Mac /PC) and softphones, and is designed to work straight out of the box
- USB 2.0 Type-A connectivity
- USB Type-A connectivity with USB-A to USB-C Adapter included
- Universal folding desk mount
- 116° Field of view
- Automatic low-light correction
- AEC – Automatic Echo Cancellation
- ANS – Automatic Noise Suppression
- Certifications UKCA, CE, FCC, RoHS, REACH
An impressive conference room video sound bar with AI powered Intelligent Zoom, four stereo duplexed microphones and two all-range speakers, coupled with a Bluetooth remote control and a magnetic privacy cover, this video sound bar is a must for all conference rooms.
Camera
- Total Pixels 8.3 mega pixels - 4K resolution
- Focus mode Fixed Focus
- Aperture F/No. =2.5 ±5%
- Image colour 24 Bit
- Maximum effective pixel 3840 x 2160
- Output image format MJPG and YUY2
- Field of view D=116° H=107° V=74°
- Intelligent zoom 16 step, 3 x digital zoom
- Minimum illumination 0.5 Lux
- Exposure Automatic Exposure (AE)
- White balance Auto White Balance (AWB), Dynamic Black Level Calibration (ABLC)
- Resolution @ 30fps 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 480
- Mic specification 4 x digital microphones
- S/N ratio ≥65.5dB
- Sensitivity -26dB Fs
- Far-field distance 0-10 meters
- Horizontal voice pickup Horizontal 180°
- Communication mode Full duplex
- Speaker specification 2 x ø40.0mm x 28.0mm
- Power supply 3W*2
- Impedance 4Ω
- Frequency range 20Hz~20KHz
- Distortion 5% Max
- Bluetooth Standard Bluetooth 4.1/EDR/BLE
- Frequency 2400 ~ 2480MHz
- TX Power 4±1.5dBm (typical)
- RX Sensitivity -85dBm (typical) π/4 DQPSK
- Operating Systems Windows; Linux; Android
- Operating Distance 10 meters
- Interface type USB 2.0 Type-A or USB Type-C
- Voltage DC 12V < 2000mA
- OS Support Win 2000/XP/Vista/Win 7/Win 8/Win 10, Win CE with UVC, Linux with UVC (above Linux - 2.6.26) Mac OS X 10.4.8 or later, Android 4.0 with UVC

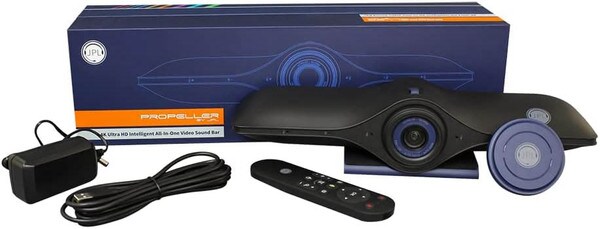

- JPL Agora Ultra HD Bluetooth Conferencing Bar
- Bluetooth remote control
- Magnetic privacy lens cover
- USB-A to USB-C adapter
