Logitech Rally Bar - White
Logitech Rally Bar - White
All-in-One Video Bar for Midsize Rooms 960-001320
SIMPLE TO SET UP
- USB Plug and Play
- Appliance Mode
- All-in-One Design
- Streamlined, Flexible Installs
Easily connects to virtually any PC or Mac®, with no additional software required
Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device
Sleek, minimal footprint expedites setup and reduces clutter
Confidently deploy at scale with smart cable management and multiple mounting options
RightSense Technologies
- RightSight
- RightLight
- RightSound
- One-Touch Join
- Logitech Sync
- Deploy Updates at Scale
- Forward-Looking Architecture
- Partner Dashboard Support
Detects meeting participants, automatically moves the lens and adjusts the zoom so no one is left out of the picture
Intelligently adjusts video settings in all light conditions so everyone always looks their best
AI-driven voice leveling and unwanted noise suppression deliver outstanding clarity
Optionally deploy with Tap to quickly and easily initiate meetings across Zoom, Microsoft Teams, and other cloud services
SIMPLE TO MANAGESingle platform to monitor room health and keep devices up to date, plus insights on room occupancy
Easily propagate upgrades and bug fixes to Rally Bar and your other supported Logitech devices
Sync API is a robust foundation for new insights and integrations
Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplified device management experience

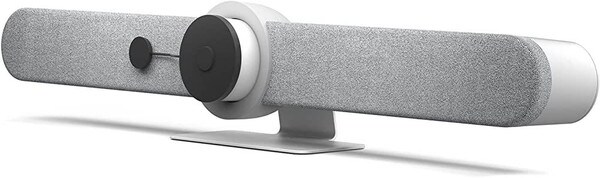

Logitech Rally Bar sets a new standard for video meetings in midsize rooms, with expansion options for larger groups and settings.
It’s remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Plug and play Rally Bar with any PC or Mac, or leverage the built-in compute to run video conferencing applications directly on the device.
Rally Bar features a multi-element lens assembly, powerful low distortion speakers, and an advanced mic system to create meeting experiences that sound as good as they look. A dedicated AI camera amplifies RightSight auto-framing and delivers insights about room usage directly to the Logitech Sync dashboard. Upgrade your video collaboration with Rally Bar.
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update) Diagonal field of view (dFoV): 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage: 132.1° Horizontal x 82.2° Vertical Speakers
- Drivers: 2x 70 mm / 2.7 in
- Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Sensitivity: 90+/-3dB SPL at 1W, ½ meter
- THD: 1kHz < 2%
- Speaker Sampling Rate: 48 kHz
- Frequency response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: 15 ft / 4.5 m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI filter
- Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms
- RightLight™: Renders natural skin tones for each participant.
- RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
- HDMI Out: 2
- HDMI In: 1
- USB 3.0: 3x Type A, 1x Type C
- Network: 0.04oz (1 g)0/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac (MIMO)
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) Remote Control: Bluetooth® Low Energy
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
- DC Cable: 5 ft (1.5 m)
- AC Cable: 3.28 gy (1 m)
- HDMI 1.4 Cable: 7 ft (2 m)
- USB A to USB C 3.0 Cable: 2.2 m/7.2 ft
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
- Certifications: Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
- Compatibility: Plug and play USB connectivity with virtually any video conferencing application
- Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 4K
- Rally Bar
- Power supply
- AC power cord
- HDMI cable
- USB cable
- Remote control
- Lens caps for main camera and AI Viewfinder
- User documentation
